TTA MULTI ROTOR M50 LOGISTICS
M50 is an eight-rotor large-load multi-purpose networked UAV newly developed by TTA. It has the characteristics of direct networking application through 4G/5G and cloud control platform, and the measurement and control is not limited by distance. As an M series drone, with its recommended 25Kg load capacity, it can support multiple types of large-scale mounting integration, which is convenient to meet more application requirements of customers and scenarios. With its superior performance, M50 has been fully affirmed and widely used by customers in the fields of investigation, delivery, search and rescue, command, fire extinguishing, inspection, logistics and so on.
Technical Features
Item / Parameters
Flight wheelbase
2.4m
Whole Weight
42KG
Standard Payload
25KG
Max Take Off Weight
67KG
Empty Flying Endurance
70mins
Full Load Flying Endurance
35mins
Max Flying Speed
15m/s
Max Flying Height
5000m
Max Win Resistance
L 7
Technical Features
Item / Parameters
Flight wheelbase
2.4m
Whole Weight
42KG
Standard Payload
25KG
Max Take Off Weight
67KG
Empty Flying Endurance
70mins
Full Load Flying Endurance
35mins
Max Flying Speed
15m/s
Max Flying Height
5000m
Max Win Resistance
L 7
Pod Options

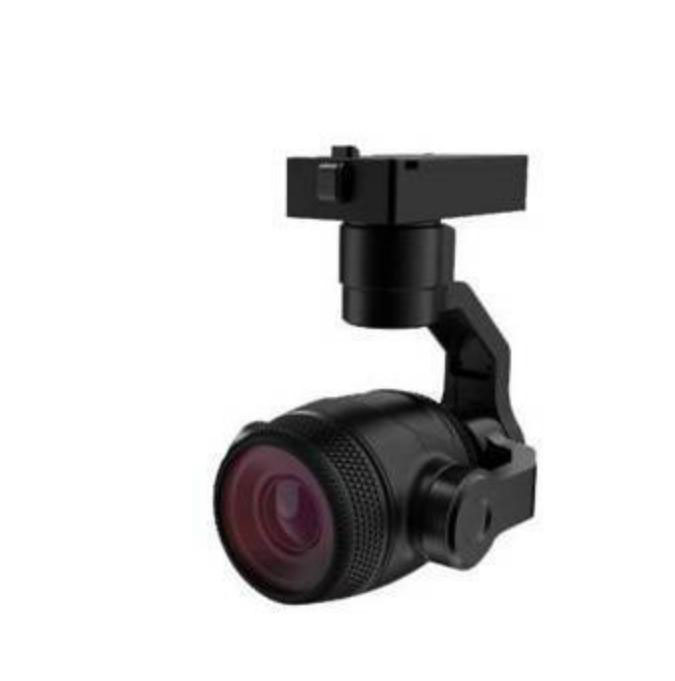

Option one: 14X Visible Zoom Pod
Item / Parameters
Operating Voltage
12V ~ 25V
Power
6W
Weight
275g
Memory Card Type
Micro SD card (single card)
Size
96*79*120mm
Interface type:
Network port
Control display mode
Windows PC
Real-time transmission resolution
720P, 1080P
Operating temperature
-10℃ ~ 60℃
Storage temperature
-20℃ ~ 70℃
Angle jitter
±0.01°
Controllable rotation range
Pitch: ±70° ~ -100°; Course: ±300°
Structure design range
Pitch: ±70° ~ -110°; Course: ±310° continuous; Roll: +90° ~ -50°
Maximum control speed
Pitch: 120°/S; Course: 180°/S
Intelligent target tracking
Supported
Sensor
CMOS: 1/2.3"
Total Pixels
13 million
Lens
3.5x optical zoom, F: 3.85 ~ 13.4 mm
Field of view Angle (horizontal)
82~25°
Image storage format
JPEG
Video storage format
MP4
Working mode
Video/photo
Fog penetration
Electronic fog penetration
Exposure mode
Automatic exposure
Resolution
(3840*2160)/30fps, 4000*3000 (20fps)
2D noise reduction
Support (automatically open)
3D noise reduction
Support (automatically open)
Electronic shutter
1/3~1/30000 second
Exposure
Automatic mode
Information Video Overlay (OSD)
Supported
Pointing zoom
Supported
Number Multiplication
4X
Pointing zoom range
1~14 times optical
One-click zoom to haploid image
Supported
Video Transmitter Distance
10KM

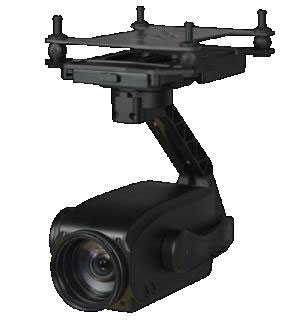

Option two: 30X Visible Zoom Pod
Item / Parameters
Operating Voltage
12V ~ 25V
Power
8.4W
Memory Card Type
Micro SD card (single card)
Size
175*100*162mm
Interface type:
Network port
Control display mode
Windows PC
Real-time transmission resolution
720P, 1080P
Video/capture resolution
3840*2160@25fps
Operating temperature
-10℃ ~ 45℃
Storage temperature
-20℃ ~ 70℃
Angle jitter
±0.008°
Controllable rotation range
Pitch: ±70° ~ -90°; Course: 360° continuous
Structure design range
Pitch: ±70° ~ -100°; Course: 360° continuous; Roll: +90° ~ -50°
Maximum control speed
Pitch: 120°/S; Course: 180°/S
Intelligent target tracking
Supported
Sensor
CMOS: 1/1.8"
Lens
30 times optical zoom lens, focal length: 6~180mm
Minimum shooting distance
1m~1.5m (near focus ~ far focus)
Field of view Angle (horizontal)
63~2.6°
Image storage format
JPEG
Video storage format
MP4
Working mode
Video/photo
Fog penetration
Electronic fog penetration
Exposure mode
Automatic exposure
Resolution
3840*2160@25fps
2D noise reduction
Support (automatically open)
3D noise reduction
Support (automatically open)
Electronic shutter
1/3~1/30000 second
Exposure
Automatic mode
Information Video Overlay (OSD)
Supported
Pointing zoom
Supported
Pointing zoom range
1~30 times optical
One-click zoom to haploid image
Supported
Video Transmitter Distance
10KM
Throwing Device
Item / Parameters
Power Supply Voltage
DC 4V-6V
Size
70 x 40 x 40 mm
Weight
150g
Recommended loading weight
10KG
Maximum load
15KG
Working environment temperature
-20℃ ~ 60℃
Service
Supply professional training for free.
Supply the 24 hours after-sales service and one year warranty service.
