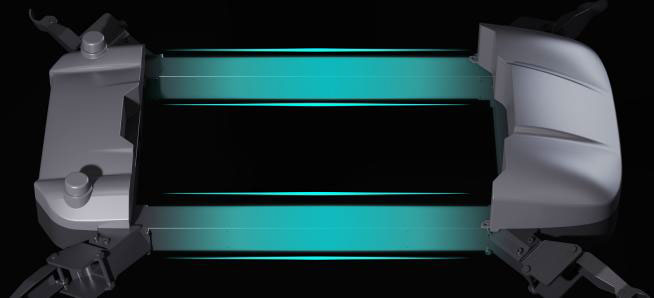

The body is made of aviation aluminum alloy structure.
Significantly reduce the weight of the fuselage.

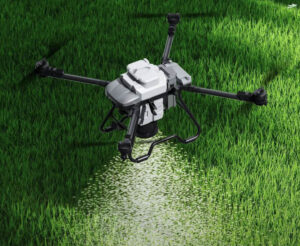

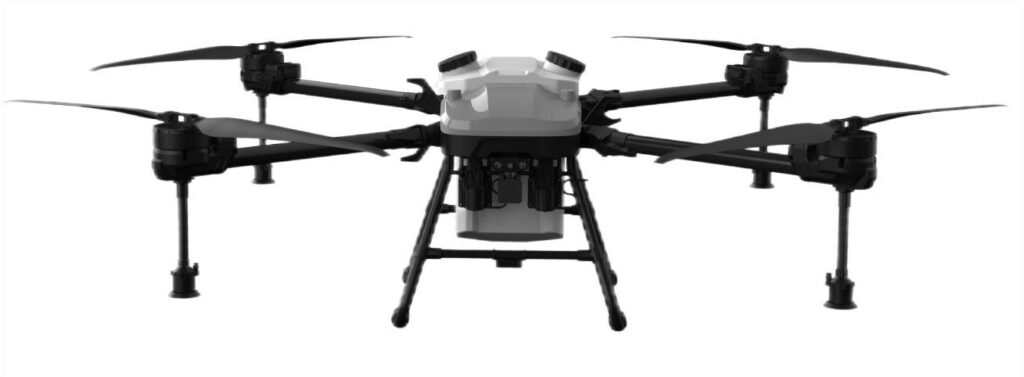

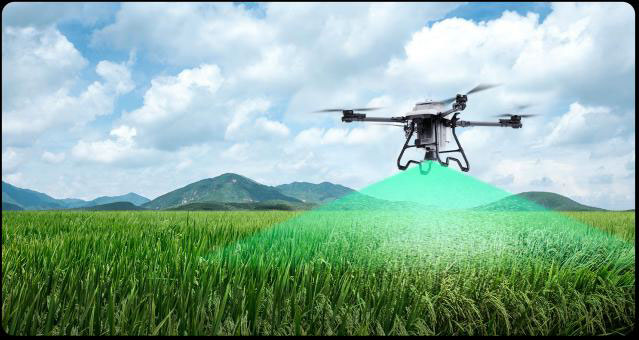

TTA M4E AGRICULTURAL DRONE SPRAYER
Big Tank Load, High Efficiency, More Than Big
Technical Features
Technical Features
Dimensions
Tank Volume
20L
Empty Weight
17.5KG
Standard Take Off Weight
45KG
Positioning
GPS
Battery Power Capacity
14S 20000mAh-51.8V
Flight
Full Payload Flying Time
15min
Max Flying Time
<20min
Flying Speed
0-8m/s
Flying Height
2000m
Landing Approach
Vertical take-off and landing
Anti-wind
<7m/s
Spraying
Spray Droplet Diameter
170-265µm
Quantity of Nozzles
2pcs Centrifugal Nozzles
Recommend Spray Speed
6-8m/s
Spray Width
6-12M
Spray Height
2-4M above crop
Advantages of M6E-1
Automatic spraying mode

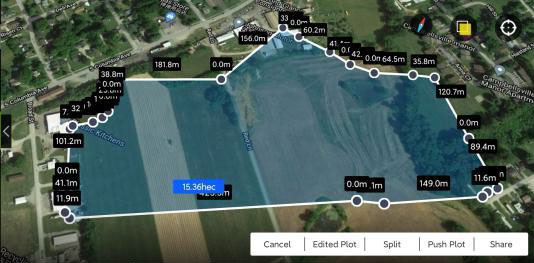

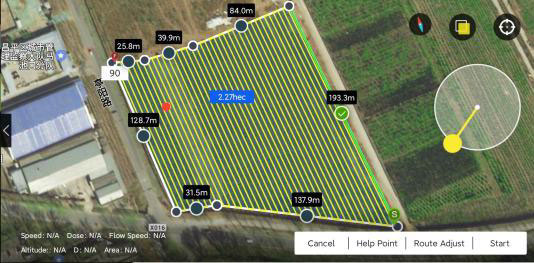

Mode 1:
Preset the working route on GCS ,find your crop field on Google Map, the route will automatically appear. The start point,the final point and the working direction can all be set.
Mode 2:
Import Kml file directly , the route will automatically appear. The start point, the final point and the working direction can all be set.
Mode 3:
Quick scanning mode:
Operator only need to set A and B point and give the drone a direction order then the drone will fly and spray automatically. Easy to shorten or extend the AB point distance during flying to adapt irregular shape
RTK accurate positioning system
Accuracy:
Horizontal: ±10cm Vertical：±10cm
Function:
Make sure the field can be fully covered.
To avoid damage neighbour crop and pollution.
One base station supports multiple drones work at same time.

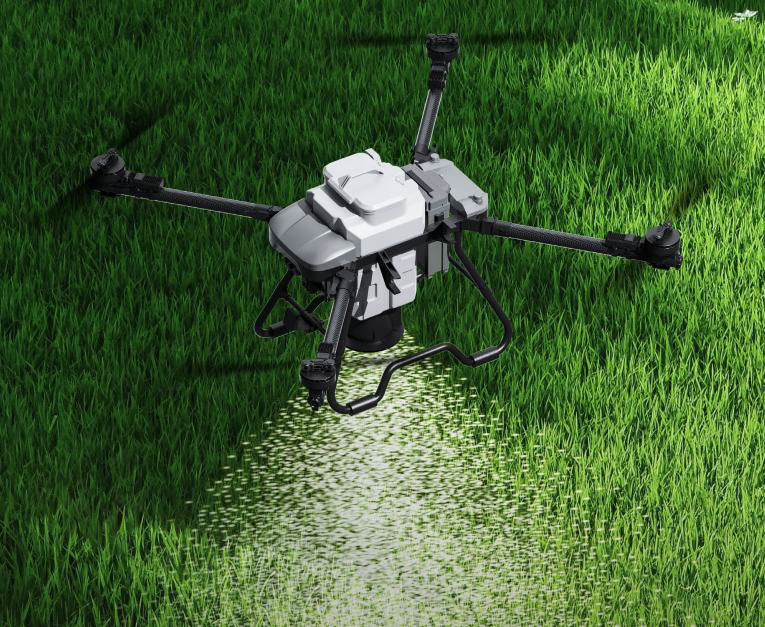

Spraying system
Double water pumps generate bigger pressure , max 14L/min adjustable flow rate. Auxiliary tank can prevent the reverse flow of water from spraying system to achieve more precise flow counting.
Auxiliary tank can prevent the reverse flow of water from spraying system to achieve more precise flow counting.

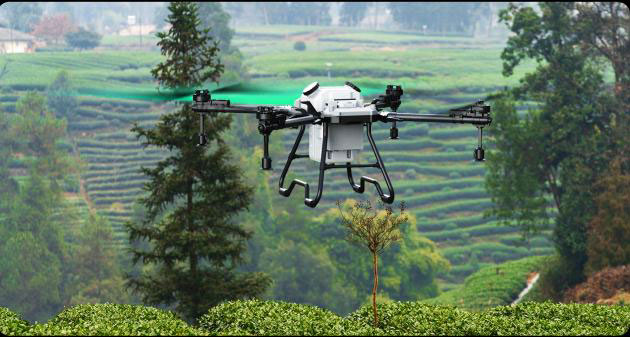

Obstacle avoidance sensor
Equip front obstacle avoidance radar makes the drone has the ability to automatically detect obstacles to avoid unexpected crash and lose.
The GCS presents the distance from the obstacles at the same time.

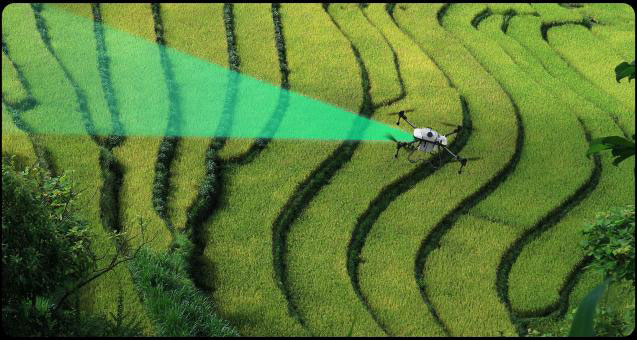

Terrain following module
To make the drone has the ability to work on undulating crop field and make the spraying work much easier.

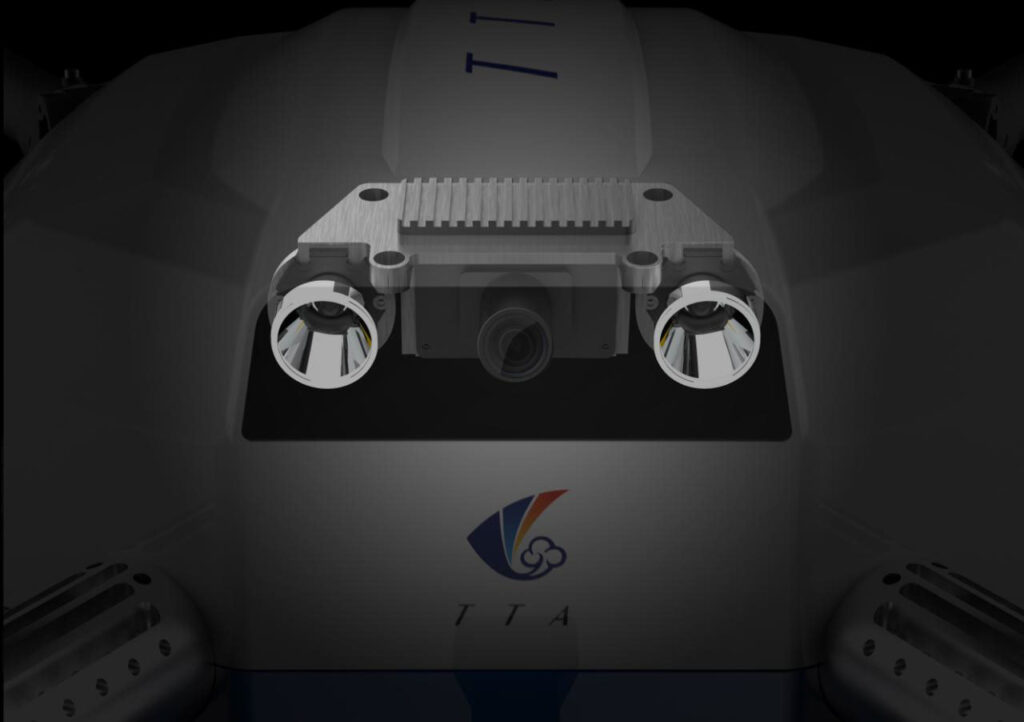

FPV camera
Real time video monitoring let you know detail information of
drone and your crop situation !
High Brightness LED Searchlight
For night work, more bright!

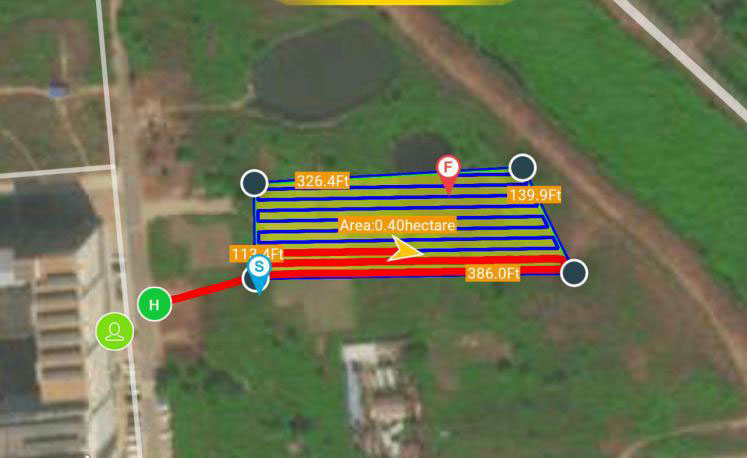

Real time tracking the flight log from the GCS. And obviously to check where is sprayed and where is not according to the color.
Seeding System
Broadcast width 6-15m, adjustable
(height 3-5 meters), max speed 80KG/min,each hour can work 5-6 hectares, spread particulate matter diameter 0.5-10mm dry solid particles

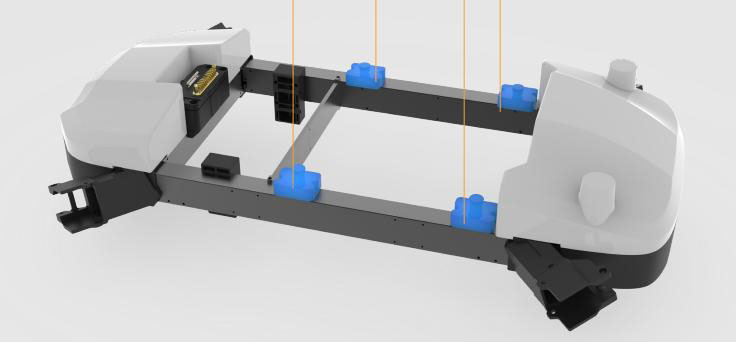

Modular Design
Real time tracking the flight log from the GCS. And obviously to check where is sprayed and where is not according to the color.
High Precision Weighting Module
Standard weighing sensor, real-time control of residual material!

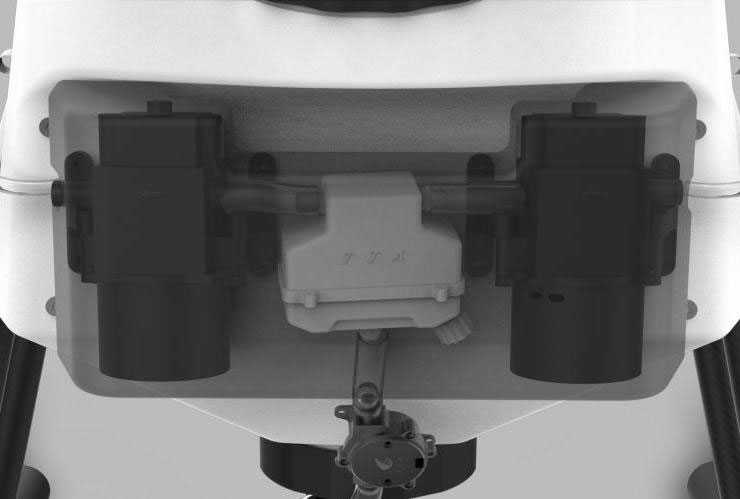

Dual Pump, High Precision Flowmeter
Maximum flow rate of a single pump 8L/ min.The accuracy of double tube flowmeter is less than 5%

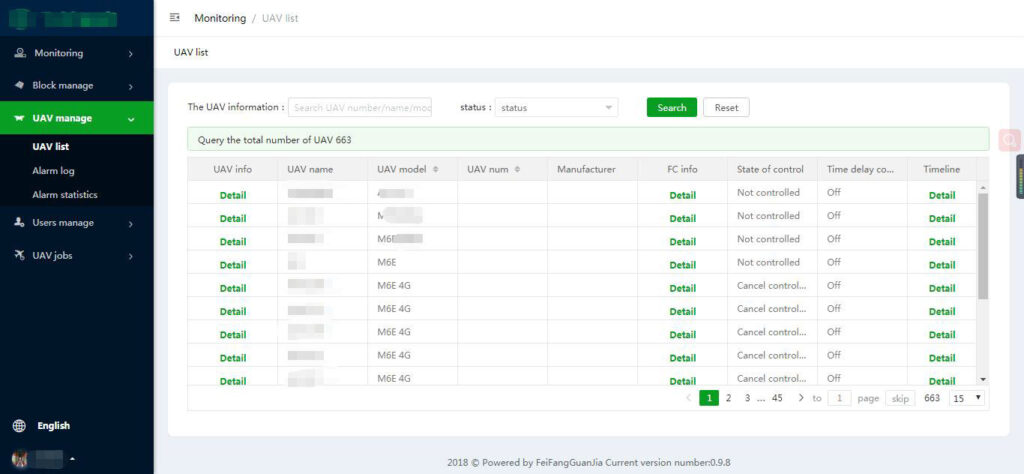

Cloud service / Background management platform
For better management not only your drones but your spraying records !
Support real time monitoring of everything drone situation. It will collect all the drones data include sprayed area, spraying location, spraying log, etc.

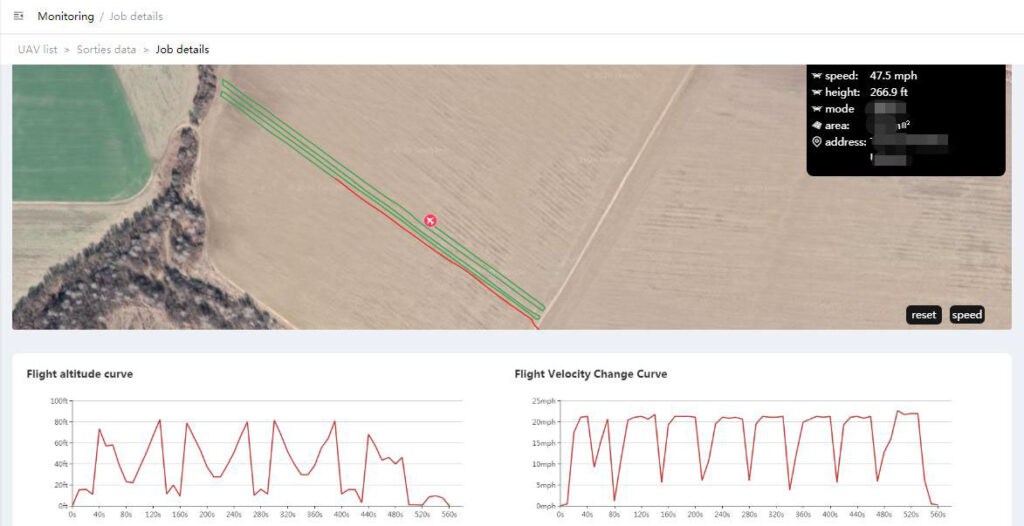

Precheck and After-check
You can review the detail performance of the drone by flight log playback function
and also can view the flight route ! Which allow you to check your drone in details
before flying and check the mission records after flight.
Service
Supply professional training for free.
Supply the 24 hours after-sales service and one year warranty service.
