TTA M10 MULTI-ROTOR NETWORKED UAV

modular design, GNSS positioning device, TOF sensor, millimeter wave radar

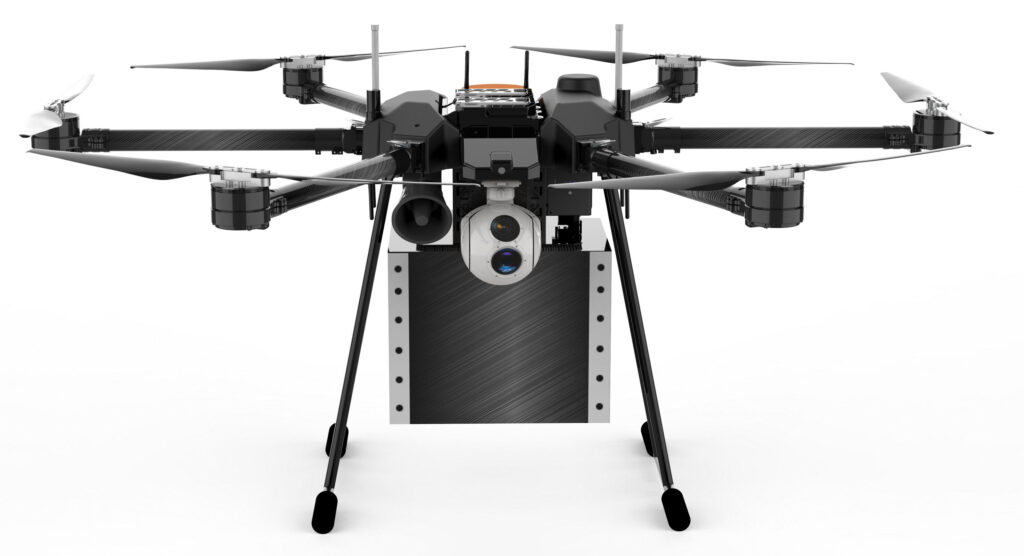

TTA M10 is a six-rotor multi-role networked UAV. Based on 4G/5G and cloud control platform makes the measurement and control are not limited by distance any more. As a highly equipped version of M10 series UAV, it forms a significant generation difference with M10 Lite through multi-task load integration, which is convenient to meet the application needs of more customers and scenarios. With its superior performance, M10 has been fully recognized and widely used by customers in the fields of investigation, delivery, search and rescue, command, mapping, inspection, logistics and so on.

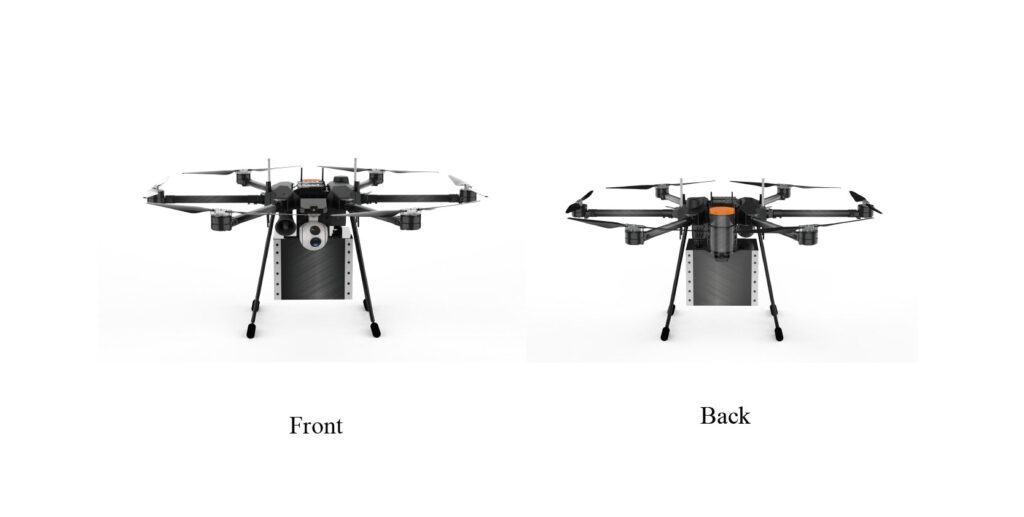

Product Composition

Functional Characteristics

M10 adopts all-electric drive, six-rotor pneumatic layout, highly integrated and modular design. It
used high-strength carbon fiber materials, with streamlined design. The body and motor adopt
self-absorption heat dissipation structure, integrated high-precision differential GNSS positioning
device with TOF sensor, millimeter wave radar, FPV vision perception system and core sensors are
redundant backup make industry application more easy.

Long Flying Endurance

Nearly 60 minutes endurance

Heavy Load

Standard 10 KG load meet logistics and delivery needs

Unlimited Distance Measurement and Control

4G/5G dual-mode communication to achieve ultra-long distance flight control

Multi-load Integration

Able with dual camera, megaphone, logistics box and others at the same time

Redundant Reliable Design

Three redundancy IMU, dual redundancy heading sensor, airspeed gauge and barometer

Emergency Safety Quarantee

4G/5G dual-mode communication to achieve ultra-long distance flight control

Multiple Communication Link

LTE, AD hoc network, remote control. Multiple communication links have a wider application range

Strong Anti-inference Ability

Individual electronic compartment, shielded by metal housing. The strong and weak electrical cables in the metal frame are laid separately

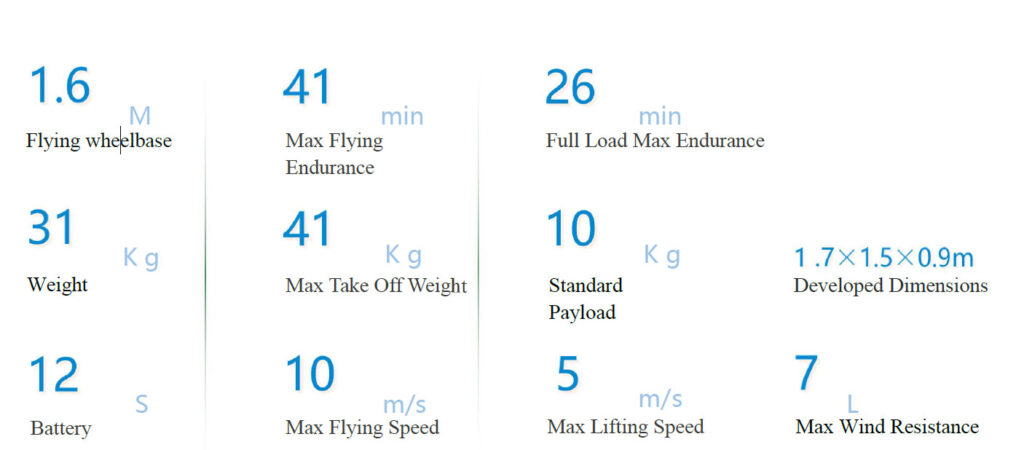

Performance Index

Advantages

Network measurement and control, not limited by distance

Real network UAV, support 4G/5G dual-mode communication, fast network access, avoid occlusion, interference, distance restrictions, fly as far as possible

HD image transmision, data througj link

Establish a direct data link between drones and cloud control platforms, rely on 5G, easily transfer massive data, low delay of high-definition images, support multiple videos on the screen at the same time, and show to who you want to see.

One machine can be loaded with multiple loads

Single drone supports multi-task load mounting such as logistics box, loudspeaker, double-light head, searchlight, etc., which can be freely selected according to different industry scenarios.

Super edge high performance computing power

High-performance acceleration gateway, with large capacity storage and computing power, intelligent open framework and algorithms, can be easily embedded in a variety of simple models, whatever you want.

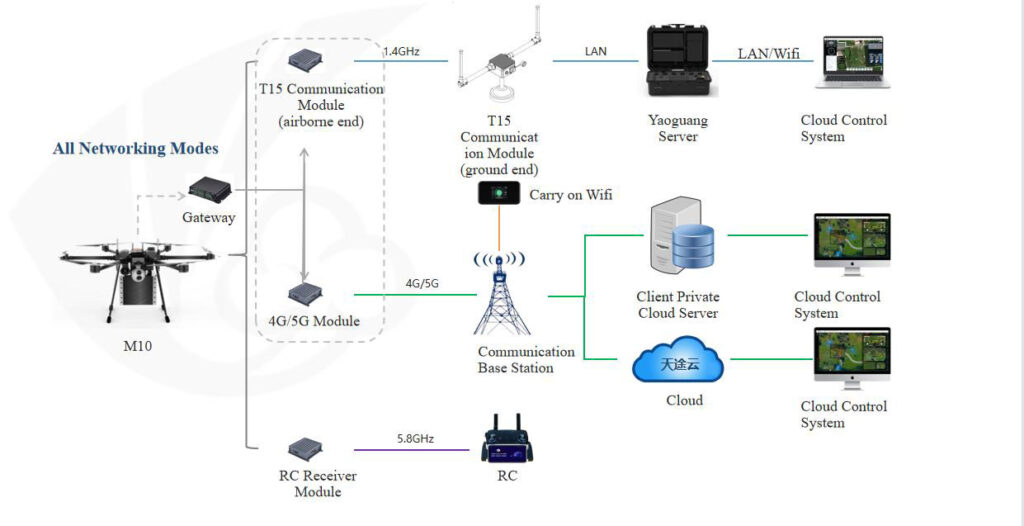

Networking Mode

Mesh AD Hoc Network

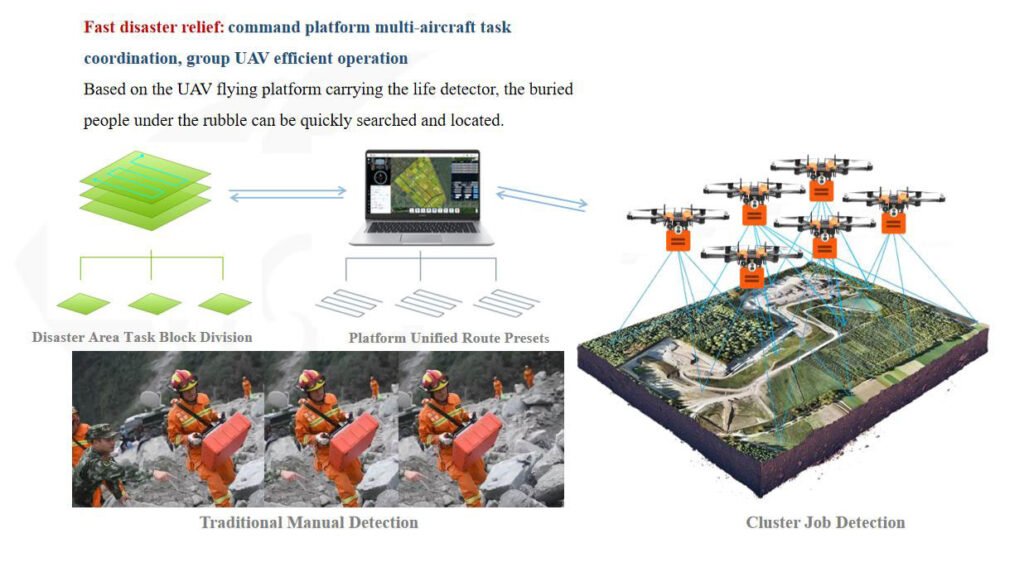

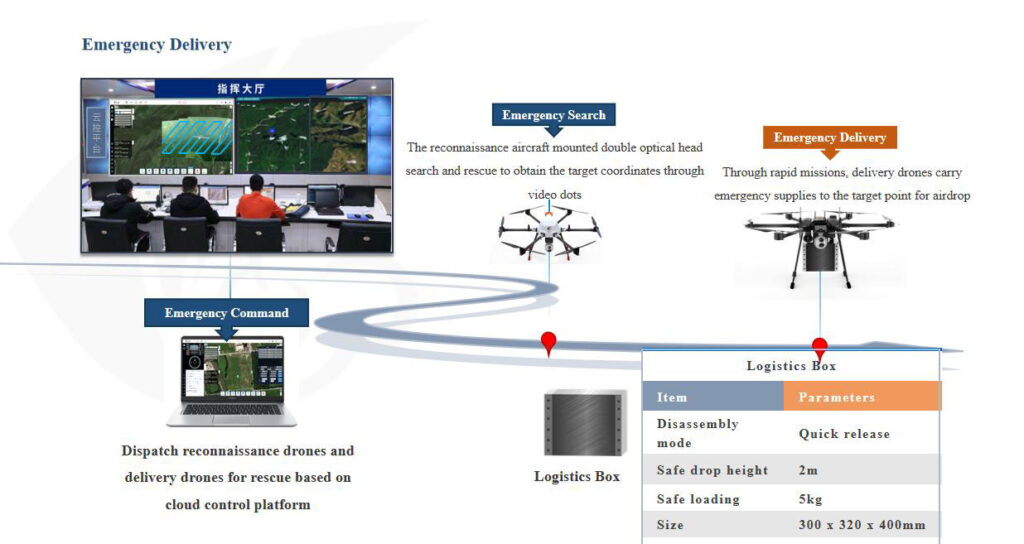

Applications

Service

Supply professional training for free.
Supply the 24 hours after-sales service and one year warranty service.
