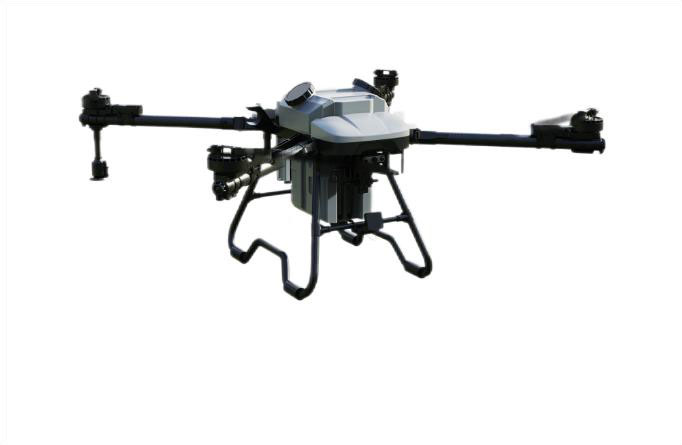

TTA M4E-G300 Pro AGRICULTURAL DRONE SPRAYER
Obstacle avoidance, Easier flying, Easier maintenance, BIG package
Technical Features
Advantages of M4E-G300 Pro
Automatic spraying mode
Mode 1:
Preset the working route on GCS ,find your crop field on Google Map, the route will automatically appear. The start point,the final point and the working direction can all be set.
Mode 2:
Import Kml file directly , the route will automatically appear. The start point, the final point and the working direction can all be set.
Mode 3:
Quick scanning mode:
Operator only need to set A and B point and give the drone a direction order then the drone will fly and spray automatically. Easy to shorten or extend the AB point distance during flying to adapt irregular shape
RTK accurate positioning system
Accuracy:
Horizontal: ±1cm + 1ppm Vertical：±2cm + 1ppm
Function:
Make sure the field can be fully covered.
To avoid damage neighbour crop and pollution.
One base station supports multiple drones work at same time.
Spraying system
Double water pumps generate bigger pressure , max 8L/min adjustable flow rate.
Auxiliary tank can prevent the reverse flow of water from spraying system to achieve more precise flow counting. Auxiliary tank can prevent the reverse flow of water from spraying system to achieve more precise flow counting.
Obstacle avoidance sensor
Equip front obstacle avoidance radar makes the drone has the ability to automatically detect obstacles to avoid unexpected crash and lose.
The GCS presents the distance from the obstacles at the same time.
Terrain following module
To make the drone has the ability to work on undulating crop field and make the spraying work much easier.
Dual LED light. Support night flight!
FPV camera
Real time video monitoring let you know detail information of
drone and your crop situation !
Real time tracking the flight log from the GCS. And obviously to check where is sprayed and where is not according to the color.
Seeding System
Broadcast width 5-10m, adjustable (height 3-5 meters) speed 800-1500RPM adjustable
Modular Design
The steering gear and control board of the cabin door can be quickly disassembled and replaced
Quick Latch Locking Design
Stable installation, not affected by vibration Quickly disassemble, install and repair the spreader
Ultrasonic Flowmeter
Precise measurement
Cloud service / Background management platform
For better management not only your drones but your spraying records !
Support real time monitoring of everything drone situation. It will collect all the drones data include sprayed area, spraying location, spraying log, etc.
Precheck and After-check
You can review the detail performance of the drone by flight log playback function
and also can view the flight route ! Which allow you to check your drone in details
before flying and check the mission records after flight.
Service
Supply professional training for free.
Supply the 24 hours after-sales service and one year warranty service.
